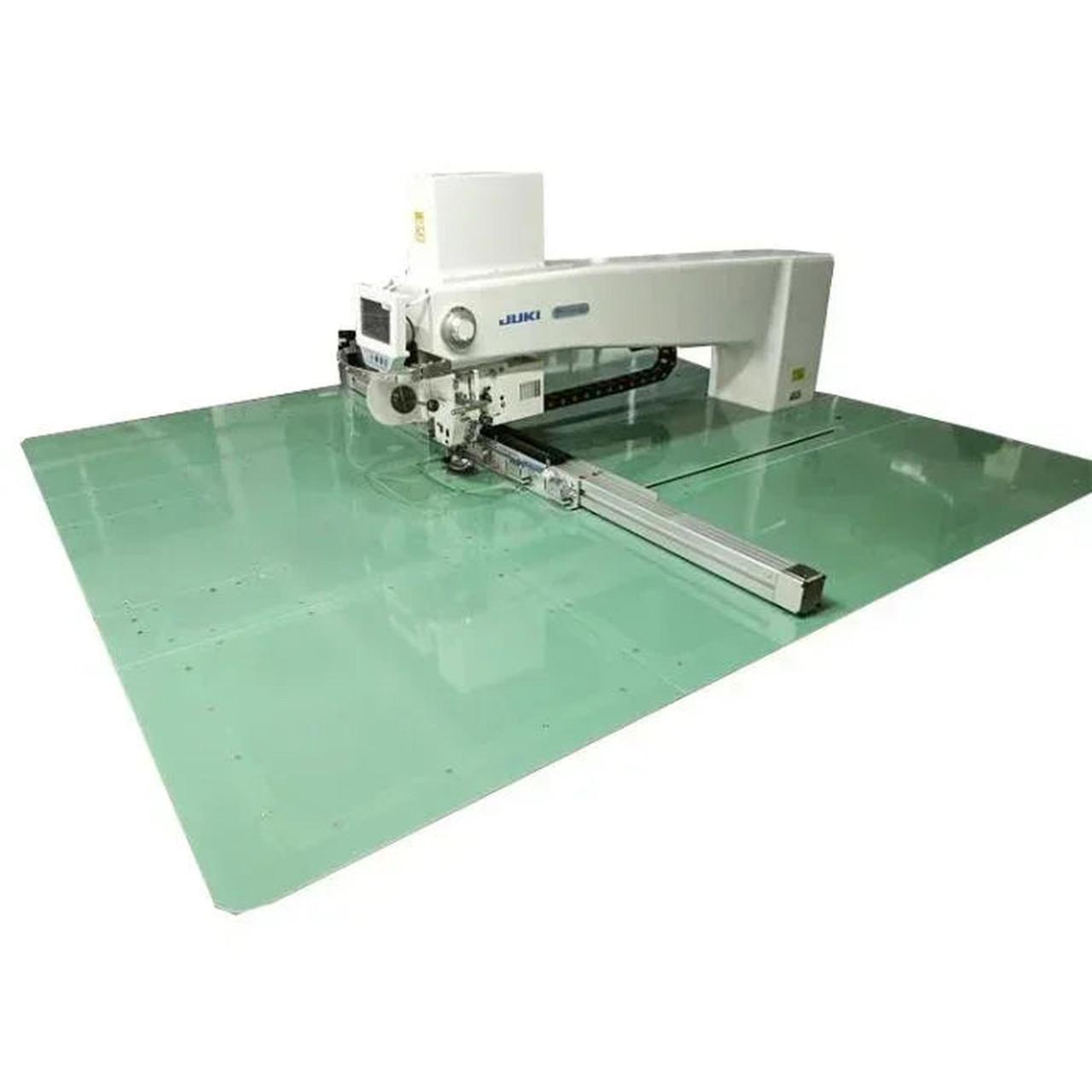

Juki SR-9950HB-13090ZKZ Computer-Controlled Head-Rotating Pattern Sewing Machine Complete Unit

No reviews yet Write a Review
Market Price: $54,287.00
$51,411.00
Save $2,876.00 per unit
SKU:
SR-9950HB-13090ZKZ
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki SR-9950HB-13090ZKZ Computer-Controlled Head-Rotating Pattern Sewing Machine Complete Unit

Market Price: $54,287.00
$51,411.00
Save $2,876.00 per unit

Juki SR-9950HB-13090ZKZ Computer-Controlled Head-Rotating Pattern Sewing Machine Complete Unit

Market Price: $54,287.00
$51,411.00
Save $2,876.00 per unit

Juki SR-9950HB-13090ZKZ Computer-Controlled Head-Rotating Pattern Sewing Machine Complete Unit

This is a computer-controlled pattern sewing system designed for heavy materials and large-format work, offering the precision needed for complex seams and oversized templates. Its wide sewing field and rotating head make it well suited for one-stroke sewing on large patterns, full-perimeter designs, and applications where repositioning needs to be minimized. The programmable intermediate presser helps stabilize layered or uneven assemblies, supporting more reliable results across challenging materials. A high-capacity hook and oil-free frame further contribute to efficient long-cycle operation and cleaner, more consistent sewing.

MACHINE FEATURES:

  • Epoxy Worktable with Large 1,300×900 mm Sewing Field: The wide sewing area enables one-stroke sewing of large patterns, drastically reducing repositioning steps and alignment errors on oversized templates or long continuous seams. The epoxy table resists contamination, helping prevent stains and keeping materials clean throughout long-cycle operations.
  • Programmable Intermediate Presser (20 mm Lift, 0–9 mm Variable Position): This stabilizes multi-layered materials,
  • Full-Rotary Double-Capacity Hook & Oil-Free Frame: The high-capacity hook supports long cycle runs with fewer bobbin changes. Oil-free, rigid frame reduces contamination and contributes to consistent mechanical performance.
  • More Stable Quality on Complex Seams: The
  • Fewer Handling Steps on Large or Full-Perimeter Designs: The
  • Greater Reliability on Layered or Uneven Assemblies: The programmable intermediate presser
  • 360° Head-Rotation System: The head, hook, and feed rotate together to follow the sewing direction, allowing curves, diagonals, and circular paths to be stitched with consistent quality. This minimizes directional variation and supports uniform results on complex contours.
  • Epoxy Table with 1,300×900 mm Sewing Field: The epoxy fiberglass table is less prone to contamination, helping protect materials from stains during long-cycle work. The large sewing area allows many patterns to be completed in a single run, reducing repositioning and helping prevent misalignment.

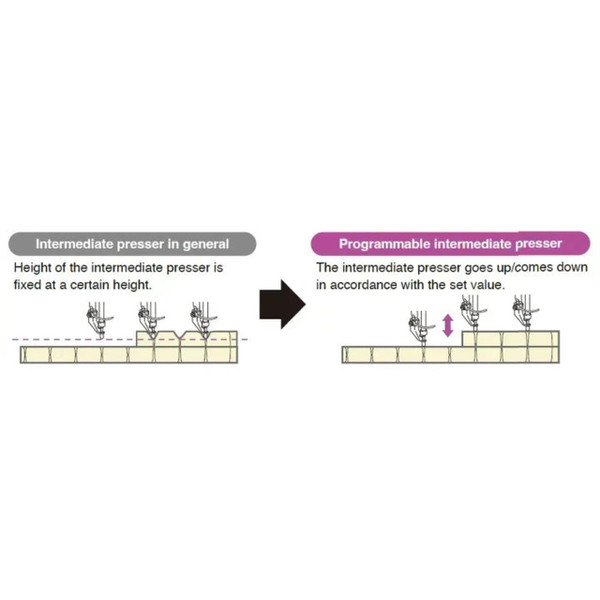

  • Programmable Intermediate Presser: With a 20 mm lift and 0–9 mm adjustable lower position, the presser maintains steady material control as thickness changes. This reduces the likelihood of stitch skipping or thread breakage and produces more accurate pattern edges on uneven assemblies.
  • RFID Template Recognition: An integrated RFID reader identifies the template and automatically loads the associated sewing program. This cuts manual selection steps, speeds up style changes, and helps prevent program-choice errors.
  • Full-Rotary Double-Capacity Hook: The enlarged bobbin capacity supports extended continuous sewing with fewer stoppages for rewinding. This improves workflow stability during long perimeter or full-pattern operations.
  • Active Thread Tension: Adjusts needle-thread tension in fine increments according to material thickness and sewing direction. This delivers more predictable stitch formation and reduces inconsistency across cycles.
  • Oil-Free, High-Rigidity Frame: The rigid, oil-free frame construction minimizes contamination risks while maintaining mechanical stability.

MACHINE SPECIFICATIONS:

  • Sewing Area: 1,300 × 900 mm (35.43")
  • Feeding Type: Belt drive
  • Max Sewing Speed: 3,000 stitches/min (1,800 stitches/min at shipping)
  • Active Tension: Standard
  • Worktable: Glass epoxy table (epoxy fiberglass laminated sheets FR-4)
  • Hook: Full-rotary double-capacity hook
  • Needle: DP×17 #21 (#19–#21)
  • Variable Lower Position Of Intermediate Presser: 0–9 mm (0.35")
  • Intermediate Presser Lift Stroke: 20 mm (0.79") lift; 3 mm (0.12") stroke (max 8 mm)
  • Stitch Length: 0.5–12.7 mm (0.50")
  • Template Reader: RFID (radio-frequency identification)
  • Installed Size Lwh: 2,326 mm (W) × 2,100 mm (L) × 1,537 mm (H)
