Juki AC-172N-1790SA1D Computer-Controlled Dry-Head Bartacking Machine Complete Unit

No reviews yet Write a Review
Market Price: $43,988.00
$40,359.00
Save $3,629.00 per unit
SKU:
AC-172N-1790SA1D
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki AC-172N-1790SA1D Computer-Controlled Dry-Head Bartacking Machine Complete Unit

Market Price: $43,988.00
$40,359.00
Save $3,629.00 per unit

Juki AC-172N-1790SA1D Computer-Controlled Dry-Head Bartacking Machine Complete Unit

Market Price: $43,988.00
$40,359.00
Save $3,629.00 per unit

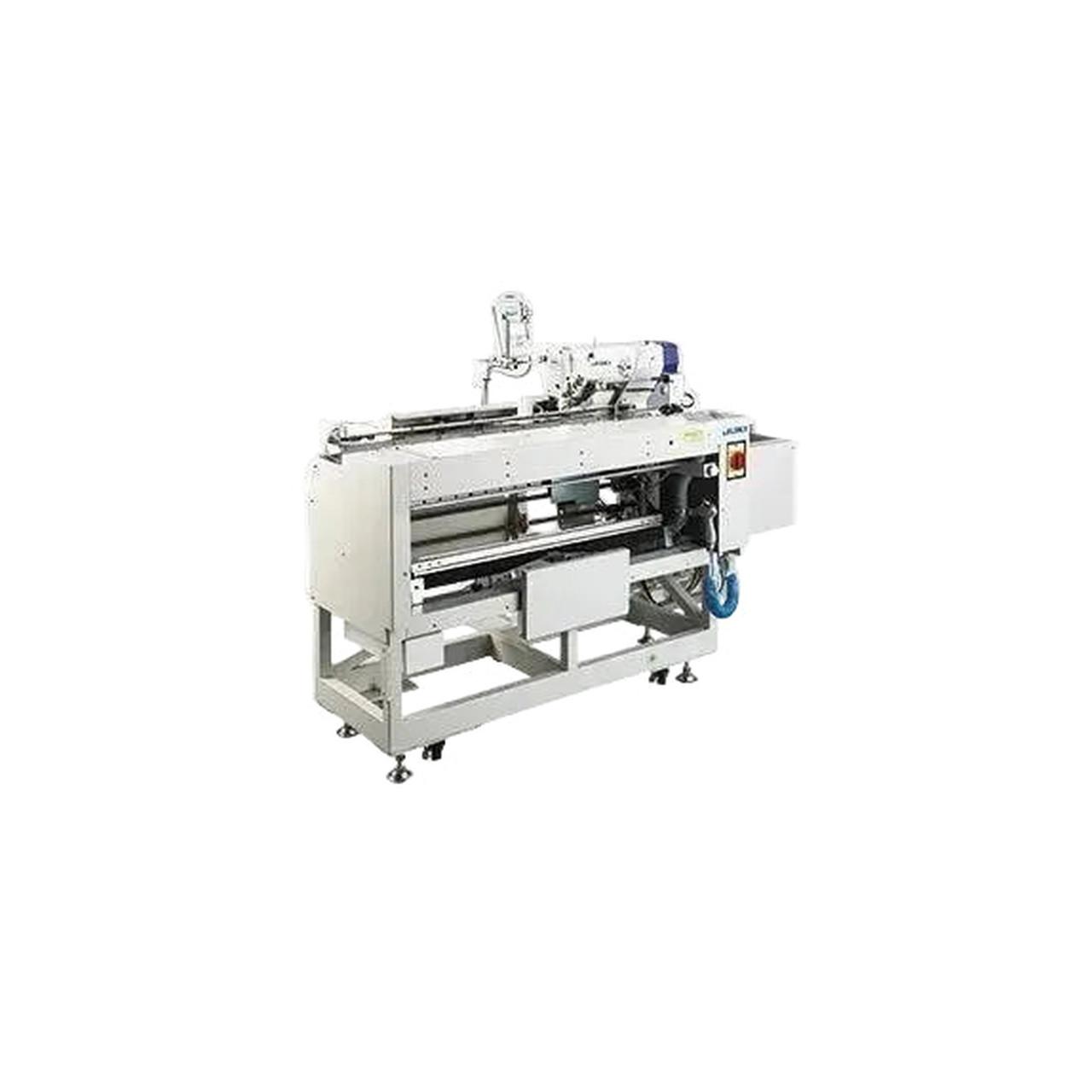

Juki AC-172N-1790SA1D Computer-Controlled Dry-Head Bartacking Machine Complete Unit

This high-performance computer-controlled bartacking machine delivers precise reinforcement sewing for garments requiring strong and durable seams. Built on an advanced platform, it combines dry-head technology with programmable sewing patterns and an indexer function for enhanced versatility. The machine excels at creating consistent, professional-quality bartacks on pockets, belt loops, and other critical stress points where superior strength is essential. Its computer-controlled operation ensures repeatable results while streamlining production workflows in commercial garment manufacturing environments.

MACHINE SPECIFICATIONS:

  • Machine Head: LBH-1790
  • Max Sewing Speed: 4,200 stitches per minute (normal: 3,600 sti/min)
  • Stitch Dimensions: Standard width 4mm (0.16") x length 25mm (Max: width 6mm x length 120mm with part replacement)
  • Cloth Trimming Length: 6.4 mm (0.25") to 19.1 mm (1/4 inch to 3/4 inch)
  • Feed System: Stepping motor, with 0.1mm (0.00") precision for material feed
  • Feed Direction: Right (for men’s garments) or left (for ladies’ garments)
  • Lift Of The Work Clamp Foot: Maximum 14 mm (0.55")
  • Needle: DP×5, size #11J to #14J (delivered with #11J installed)
  • Number Of Patterns: Stores up to 20 buttonholing patterns
  • Number Of Buttonholes: 1 to 20 buttonholes per cycle
  • Power Requirement: Single-phase 220-240V or 3-phase 200-240V, Power consumption 1,000 VA
  • Compressed Air: 0.5 MPa (5 kg/cm²), 240 Nl/min
  • Dimensions: 1,910 mm (W) × 850 mm (D) × 920 mm (H)
  • Weight: 300 kg
  • Presetting Device: Included as standard for improved productivity
  • Stacker: Built-in, automatically stacks garments after buttonholing

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
