Juki AMB-289A-MC640-EIP420D Computer-Controlled Button Neck-Wrapping Machine Complete Unit

No reviews yet Write a Review
Market Price: $64,273.00
$47,724.00
Save $16,549.00 per unit
SKU:
AMB-289A-MC640-EIP420D
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki AMB-289A-MC640-EIP420D Computer-Controlled Button Neck-Wrapping Machine Complete Unit

Market Price: $64,273.00
$47,724.00
Save $16,549.00 per unit

Juki AMB-289A-MC640-EIP420D Computer-Controlled Button Neck-Wrapping Machine Complete Unit

Market Price: $64,273.00
$47,724.00
Save $16,549.00 per unit

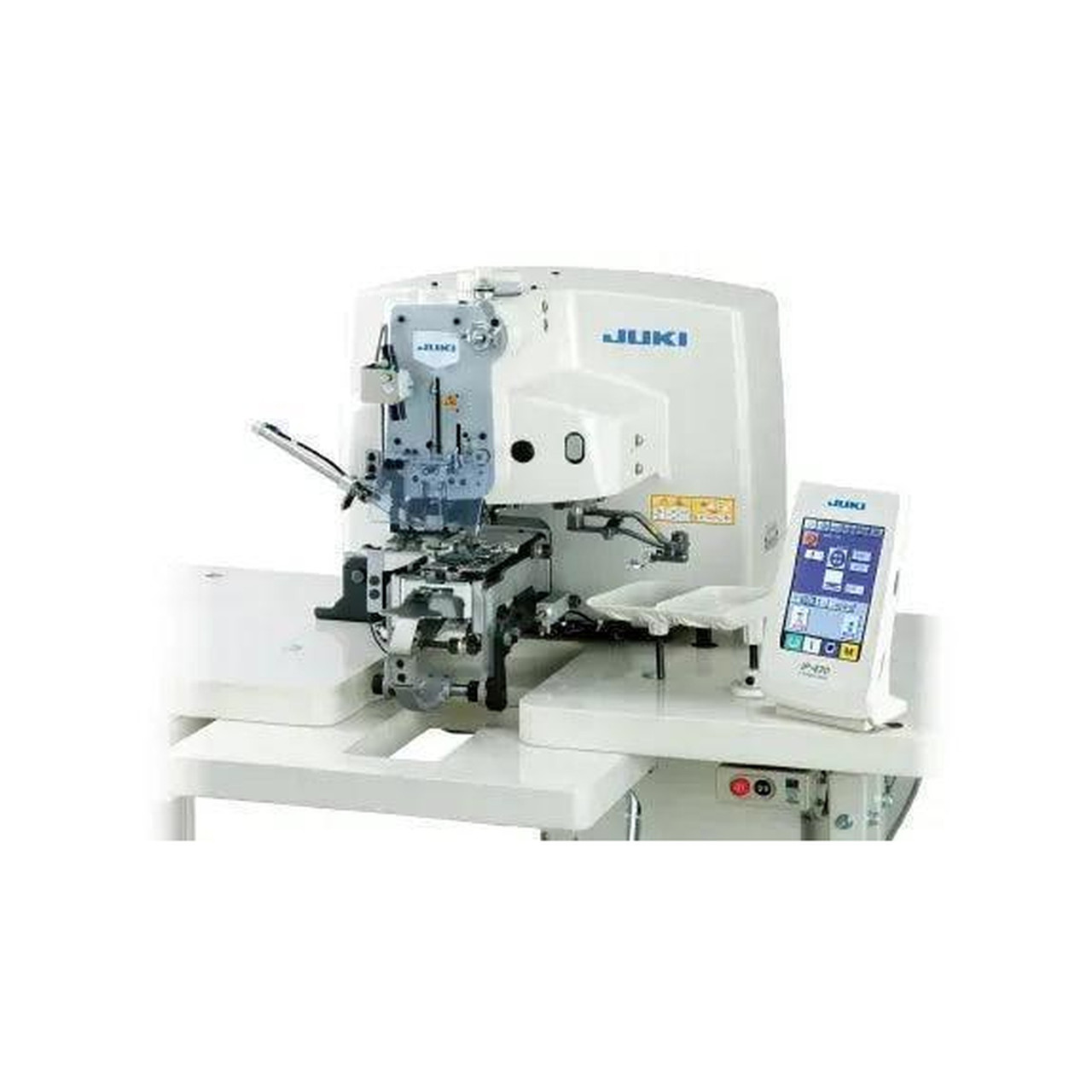

Juki AMB-289A-MC640-EIP420D Computer-Controlled Button Neck-Wrapping Machine Complete Unit

This high-performance computer-controlled single-thread chainstitch machine is specifically engineered for professional button attachment with precise neck wrapping capabilities. Built on Juki's advanced AMB-289A platform, it delivers exceptional precision and reliability when working with various button types, making it an ideal solution for garment manufacturers requiring consistent, high-quality button sewing operations. The machine features a movable eye guard for enhanced operator safety and improved visibility during operation. Its computer-controlled system ensures repeatable results and streamlined workflow, making it particularly well-suited for high-volume production environments where both speed and accuracy are essential.

MACHINE SPECIFICATIONS:

  • Machine Head: AMB-289 (Exclusive machine head for button-neck wrapping, Semi-dry head)
  • Max Sewing Speed: 1,800 stitches per minute (sti/min) for neck wrapping, 1,200 sti/min for button sewing​
  • Lift Of The Work Clamp Foot: Adjustable neck-wrap height from 1.5mm (0.06") to 10mm (0.39")
  • Stitch Length: Distance between buttonholes: 1.5mm (0.06") to 6mm (adjustable in 0.1mm increments)​
  • Needle: SM×332EXTLG-NY, #12 to #18 (standard size #14)​
  • Thread: Compatible with general-purpose cotton and spun threads (500170dtex, #60#30CA)
  • Power Requirement Power Consumption: Single-phase 220~240V​
  • Compressed Air And Air Consumption: Periodic greasing required; no traditional oil lubrication system​
  • Total Weight: Not explicitly mentioned, but similar machines range around 130-150kg
  • Dimensions: Not explicitly mentioned, typical dimensions of similar models are 1,200mm (W) × 850mm (D) × 1,210mm (H)
  • Automatic Thread Trimming: Yes, provided as standard​
  • Automatic Foot Lift: Yes, provided as standard​
  • Safety Features: The machine will not start without buttons set in the button chuck. Safety switch shuts down if the machine head tilts​
  • Button Size Compatibility: Can sew buttons ranging from ø8mm (0.31") to ø38mm (ø32mm for neck wrapping, ø25mm for counter buttons)

THE ADVANTAGES OF A SERVO MOTOR:

  • Silent and use up to 90% less power than clutch motors
  • Infinitely adjustable speed control via foot pedal
  • Full power at all speeds, even at very low RPM
  • Instant start/stop with electronic braking
  • No parts to wear out or adjust
  • Lightweight, precise, and reliable

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
