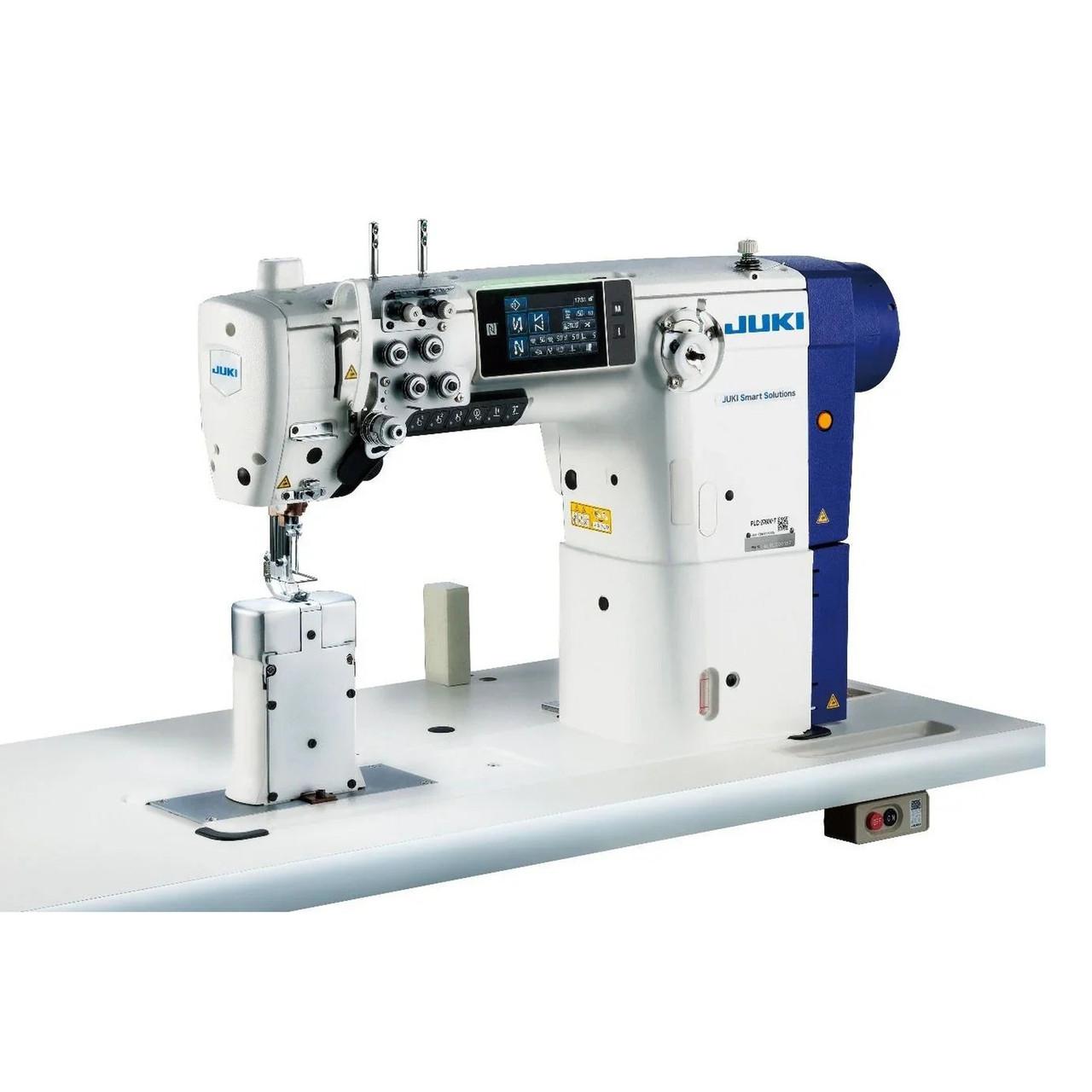

Juki PLC-2710NVS-70BBZ Single Needle Digital Direct-Drive Post Bed Unison-Feed Lockstitch Industrial Sewing Machine Complete Unit with Table and Stand

This heavy-material sewing machine is designed for demanding applications where smooth control and consistent stitch quality are essential. Its tall post-bed design and true unison feed make it well suited to sewing 3D or hard-to-handle assemblies such as seats, sofas, and structured bags. The digital sewing system lets operators set and store key sewing conditions for repeatable results across different styles, helping support efficient, consistent production. Semi-dry, direct-drive construction and a large-capacity hook further contribute to reliable performance on thick material stacks.

MACHINE FEATURES:

• JUKI PLC-2710NVS-70BBZ: Please note: product offered on this listing is the 1-needle version of the machine. The video featuring the 2-needle type is included for informational reference.
• 2.0-fold capacity: Please note: product offered on this listing is the 1-needle version of the machine. The video featuring the 2-needle type is included for informational reference.
• semi-dry, direct-drive digital head: Please note: product offered on this listing is the 1-needle version of the machine. The video featuring the 2-needle type is included for informational reference.
• automatic thread trimming: Please note: product offered on this listing is the 1-needle version of the machine. The video featuring the 2-needle type is included for informational reference.
• 2,500 stitches/min: Please note: product offered on this listing is the 1-needle version of the machine. The video featuring the 2-needle type is included for informational reference.
• Digital Sewing System: Digitally set and store stitch length, sewing speed, presser-foot pressure, alternating vertical movement, and active needle-thread tension; reuse conditions per style and lock them down with password control for repeatable quality.
• USB Port and Contactless Transfer: The head’s panel includes a standard USB port for data backup/updates, and supports two-way, contactless communication (NFC) with JUKI Smart App so you can clone parameters and check machine status across the line quickly, improving setup consistency and stabilizing product quality.

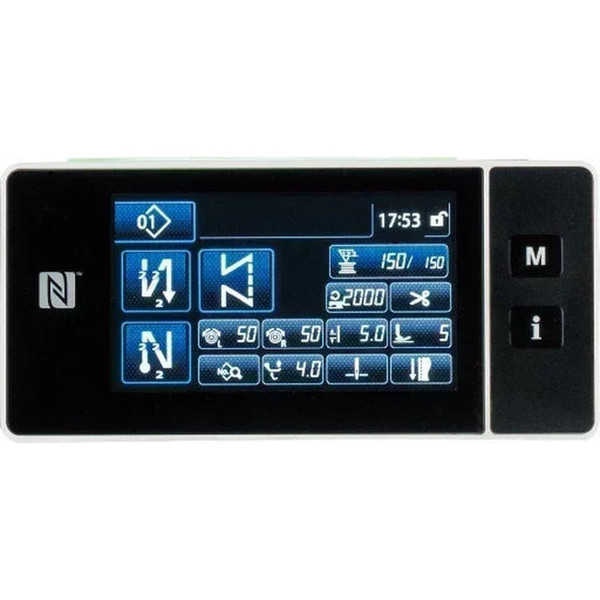

• Operator Aids On-Head: A 4.3″ color touch panel, jog dial (needle up/down), touch-back reverse, and a multi-functional 6-key switch pad put one-touch controls at hand for smoother handling.

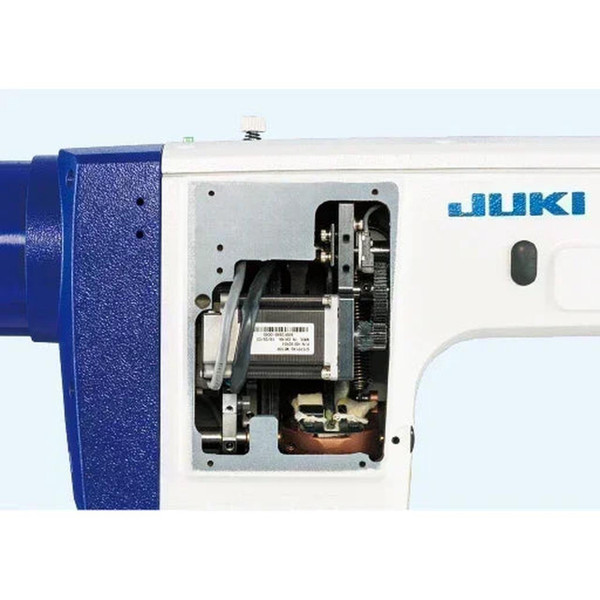

• Direct-Drive Motor —: The in-head, high-torque direct-drive motor is tuned for heavy materials, giving faster response and strong needle penetration through multi-layer sections; it supports high-speed operation while keeping handling precise on 3D work.
• High-Torque Control on Heavy Stacks: The in-head, high-torque direct-drive motor is tuned for heavy materials, giving faster response and strong needle penetration through multi-layer sections; it supports high-speed operation while keeping handling precise on 3D work.
• Multi-Layer Section Detection: The machine can auto-switch to a pre-registered set of parameters (pitch, tension, pressure, alternating lift) when a thickness change is detected, stabilizing stitch quality over step-ups.
• Large 2.0-Fold Capacity Vertical-Axis Hook: Latch-type large-capacity hook for longer runs on heavier thread with stable loop formation on dense stacks.
• Upholstery-Grade Clearances: Higher presser-bar lift up to
• Built-In Arm Bobbin Winder: Integrated on the machine arm so operators can wind a new bobbin while sewing, reducing stoppages and keeping thread supply consistent without separate equipment.
• Top/Bottom Feed Tuning: Adjust bottom-feed rise/drop and the upper-to-lower feed ratio; feed-cam eccentricity is adjustable to keep pitch tidy on different materials.
• Line-Wide Consistency, Less Training: The digital head saves stitch length, speed, foot pressure, alternating lift, and active tension; clone settings via USB/NFC so every station sews the same.
• Cleaner Seams on Bulky 3D Parts: True unison feed with electronically controlled 0.5–9.0 mm alternating lift keeps layers aligned through step-ups and tight curves.
• Shorter, Tidier Cycles: Direct drive and automatic thread trimming cut handling. Continuous sewing (cycle/polygon/custom pitch) lets you pre-register steps and stitch lengths so the machine switches them automatically in one pass, minimizing stops and button presses for faster, more consistent seams.
• Fewer Stops Mid-Run: Large 2.0-fold vertical hook and built-in arm winder extend run length with heavy thread and simplify bobbin management.
• Lower Defect Risk on Premium Materials: Semi-dry head (no oil at needle bar/take-up) and reliable low-speed lubrication help prevent stains and keep stitch quality stable.
• SC-952AD Control Box: High-stability direct-drive controller with digital parameter storage (stitch length, speed, foot pressure, alternating lift, active tension) and data I/O for quick cloning of settings across machines, improving consistency and cutting changeover time.
• Upholstery & Furniture Shops: Seats, sofas, armrests, quilted panels, and decorative topstitching on padded assemblies.
• Automotive & Transportation Interiors: Car seats, bolsters, door/trim panels, RV and bus seating with heavy threads and long runs.
• Marine & Outdoor Upholstery: Helm seats, cockpit cushions, covers, and heavy vinyls/coated fabrics that demand stable feeding.
• Bags & Leather Goods Manufacturers: Structured shells, handles/straps, piping/welts, and long decorative seams around 3D shapes.
• V-7 Digital Platform: Lock in stitch length, speed, presser pressure, alternating lift, and active thread tension, so every operator produces the same result.
• Continuous Sewing (Cycle/Polygon/Custom Pitch): Program straight-to-corner-to-curve (with long/short stitch mixes) and the machine changes over on its own, speeding runs and standardizing results across operators.
• USB Port and Contactless Data Transfer: The control panel includes a standard USB port for easy data backup and updates, plus phone pairing via JUKI Smart App so settings can be cloned quickly between machines to keep results uniform.
• Large 2.0-Fold Capacity Vertical-Axis Hook: Longer runs on heavier thread with fewer bobbin changes. Loop formation remains stable on dense materials.
• Electronically Controlled Alternating Lift (0.5–9.0 mm): Set the foot’s vertical climb from the panel so it steps cleanly over joins and thickness changes without puckering or imprint marks.

MACHINE SPECIFICATIONS:

• Machine Type: Post-bed, 1-needle, unison-feed lockstitch
• Hook: Vertical-axis 2.0-fold capacity hook (latch type)
• Application: Heavy materials
• Max Sewing Speed: 2,500 sti/min
• Max Stitch Length: 12 mm (forward/reverse)
• Needle Bar Stroke: 40 mm (1.57")
• Presserfoot Lift: 20 mm (auto)
• Alternating Vertical Movement: 0.5–9.0 mm (0.35"), electronically controlled
• Distance From Needle To Arm: 347 mm (13.66")
• Post Height: 170 mm (6.69")
• Lubrication: Automatic tank system; semi-dry head
• Needle: 134×35 (Nm100–180, std. Nm140)
• Thread: approx. #30–#5

THE ADVANTAGES OF A DIRECT DRIVE MOTOR:

• Silent and use up to 90% less power than clutch motors
• Infinitely adjustable speed control via foot pedal
• Full power at all speeds, even at very low RPM
• Instant start/stop with electronic braking
• No parts to wear out or adjust
• Lightweight, precise, and reliable
