Juki AP-876SZ-SZZD Fully Automatic Jeans Pocket Setter Complete Unit

No reviews yet Write a Review
Market Price: $114,024.00
$107,983.00
Save $6,041.00 per unit
SKU:
AP-876SZ-SZZD
Condition:
New
Shipping:
  • Flexible financing available through Synchrony
Need a Part? Browse our +500,000 Sewing Machine Parts Catalog!

Juki AP-876SZ-SZZD Fully Automatic Jeans Pocket Setter Complete Unit

Market Price: $114,024.00
$107,983.00
Save $6,041.00 per unit

Juki AP-876SZ-SZZD Fully Automatic Jeans Pocket Setter Complete Unit

Market Price: $114,024.00
$107,983.00
Save $6,041.00 per unit

Juki AP-876SZ-SZZD Fully Automatic Jeans Pocket Setter Complete Unit

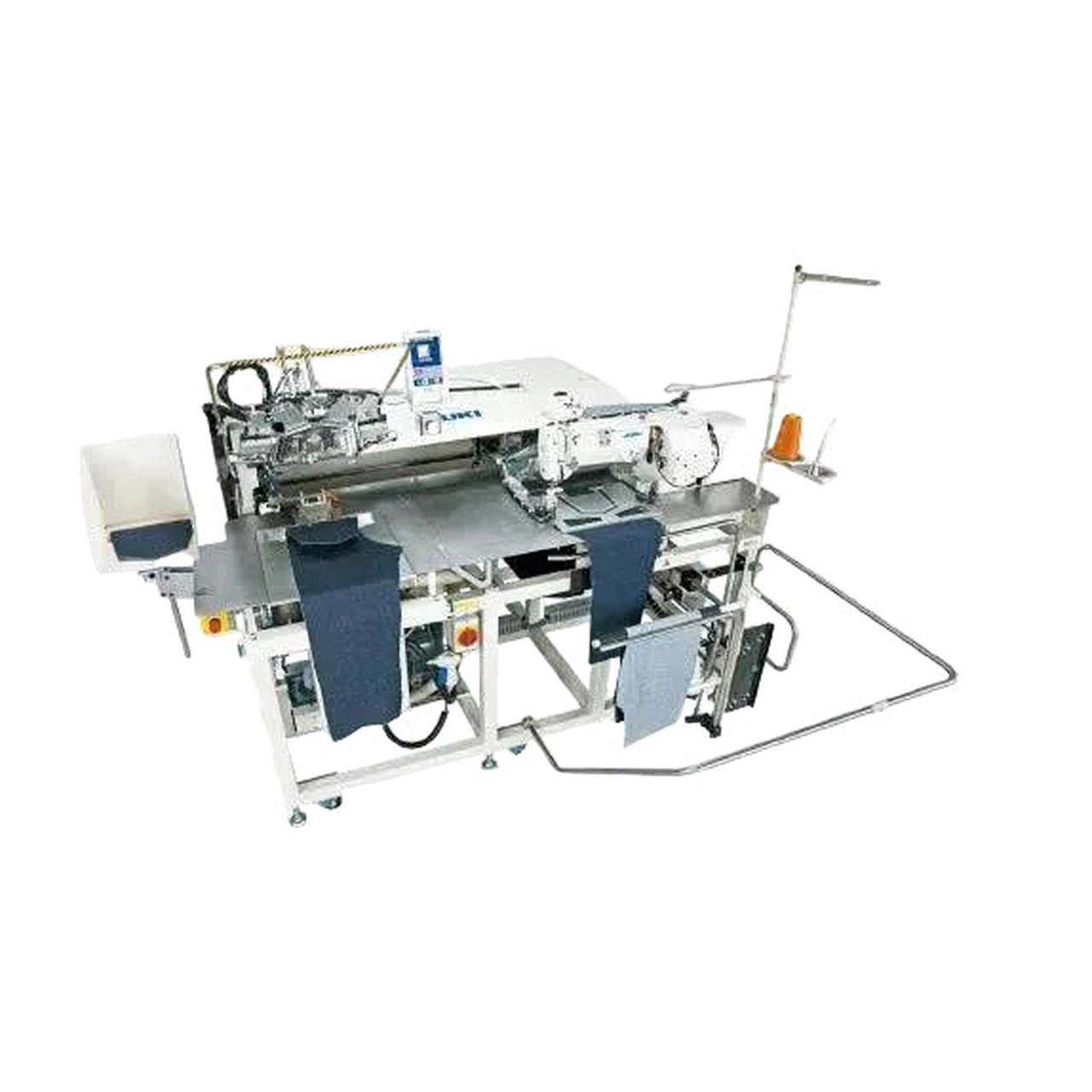

This fully automatic industrial pocket setting machine is designed for high-speed production of jeans back pockets and similar garment applications. Built on the advanced AP-876 platform, it combines automatic pocket folding, positioning, sewing, stacking, and bartacking preparation to streamline pocket attachment. The integrated crease-folding system and clamping stacker help support consistent pocket shape and seam quality, making it well suited for large-scale apparel manufacturing where repeatable results are essential.

MACHINE APPLICATIONS:

  • Fully automatic jeans pocket setting
  • Integrated crease-folding system
  • Automatic pocket positioning and sewing

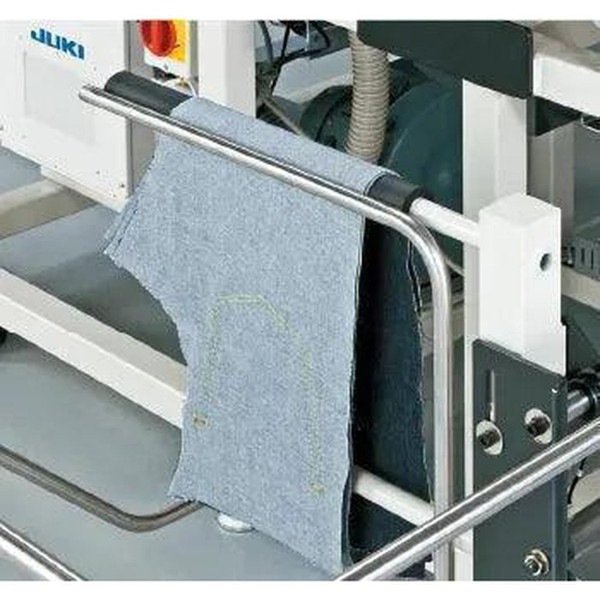

  • Automatic clamping stacker system
  • Consistent pocket shape and seam quality
  • Reduced labor and operator dependency
  • High-speed production up to 4,000 stitches/min
  • Fast style changeover for flexible production

MACHINE SPECIFICATIONS:

  • Machine Head: High-speed, 1-needle, lockstitch, zigzag stitching machine (exclusive machine head with semi-dry head system)
  • Max Sewing Speed: 4,000 stitches per minute (sti/min)
  • Lift Of The Work Clamp Foot: Maximum 23 mm (0.91")
  • Hook: Horizontal-axis full-rotary, 1.7 fold-capacity hook
  • Stored Sewing Patterns: Main-body memory: Max. 999 patterns; External media support: Max. 999 patterns
  • Stitch Length: 0.1 mm (0.00") to 6.0 mm (adjustable)
  • Stitch Width: Maximum 4.3 mm (0.17")
  • Needle: SCHMETZ 134 SERV7 (Nm130)
  • Thread: Single thread system
  • Bartacking: Automatic bartacking function provided
  • Thread Trimming: Automatic thread trimming feature included
  • Foot Lift: Automatic foot lift feature provided
  • Power Requirement Power Consumption: Single-phase 220V / 683.9 VA, 3-phase 200V / 655.2 VA
  • Compressed Air And Air Consumption: 0.5 MPa (5kg/cm²), 220 dm³/min
  • Total Weight: 558 kg
  • Sewing Area: 250 mm (9.84") × 250 mm (9.84")

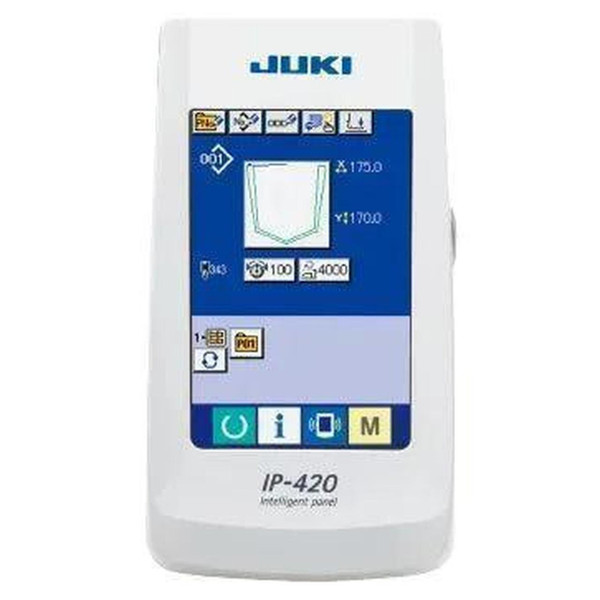

  • Operation Panel: IP-420 (large color liquid crystal touch panel, USB support)
  • Energy Efficiency: Encoder control system reduces power consumption by 12% compared to earlier models

Machine Warranty Protection

Besides any applicable warranties provided by the Original Manufacturer, Jacksew offers a standalone 90-day limited warranty on defects in materials and workmanship.

  • This warranty covers all the machine parts and labor but any shipping costs must be covered by the customer

  • Only applies under normal sewing conditions as prescribed for the machine

  • Consumable items are not covered (needles, bobbins, bobbin cases, springs, oil, and belts)

  • This warranty does not cover improper use or abuse under heavy use of machines

  • This warranty does not cover flood, fire, or other acts of nature

If there are any warranty issues that arise, we ask that you contact us immediately and let us know the details. In most cases, we can guide you with getting your machine in good sewing condition via phone, text or video chat.

If you need any parts that need to be replaced, we stock the majority of parts for immediate shipment. Some parts not in stock may have to be ordered from the manufacturer and may take 1 to 2 weeks for arrival.

If there is a critical issue that needs to be addressed and is out of scope of minor adjustments or repairs, we will ask you to send us the machine to our shop so we can have it repaired and have it back to good sewing condition. In most cases, we will only need the machine head shipped to us. Shipping charges - both inbound and outbound - are the responsibility of the customer.

Warranty issues do not arise frequently because of our commitment to assemble, test and verify each machine we ship out to our customers. We will never send you a machine directly from the manufacturer in boxes without knowing that the machine will be ready to operate upon arrival.

DISCLAIMER: DUE TO THE HEAVY WEIGHT AND SHIPPING METHODS USED FOR INDUSTRIAL MACHINES THEY MAY EXPERIENCE MARRING AND SCRATCHES DURING SHIPPING. THIS WILL NOT AFFECT THE OPERATION OF THE MACHINE.

ANY DAMAGE OCCURRING DURING SHIPPING MUST BE CLAIMED TO THE FREIGHT CARRIER IMMEDIATELY. UPON REQUEST, JACKSEW WILL PROVIDE ASSISTANCE IN FILING A CLAIM ON YOUR BEHALF DURING SUCH AN EVENT. PLEASE NOTIFY US WITHIN 5 BUSINESS DAYS.
